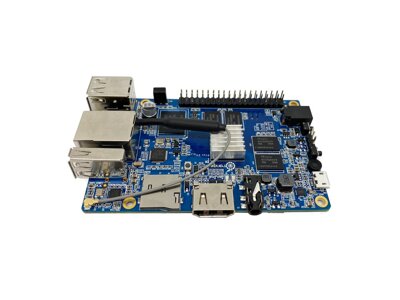

Kompaktný počítač Orange Pi Plus 2E H3 štvorjadrový 1,6 GHz 2 GB RAM 4 K Mini-PC Open-Source

Kompaktný počítač Orange Pi Plus 2E H3 štvorjadrový 1,6 GHz 2 GB RAM 4 K Mini-PC Open-Source

Hodnotenie produktu: 5/5 (1x)

Vaše hodnotenie:

Je to jednodeskový počítač typu open-source. Môže bežať na Androide 4.4, Ubuntu, Debian Image, používa AllWinner H3 SoC a má 2 GB DDR3 SDRAM

79 € s DPH

65,29 €

100,66 € s DPH Zľava 21.5%

Dostupnosť: Skladom

Otázka k produktu

What can I do with Orange Pi Plus 2E?

Build:

  • A computer
  • A wireless server
  • Games
  • Music and sounds
  • HD video
  • A speaker
  • Android
  • Scratch
  • Pretty much anything else, because Orange Pi Plus 2E is open source

Who's it for?

Orange Pi Plus 2E is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

HARDWARE SPECIFICATION
CPU H3 Quad-Core Cortex A-7 H.265//HEVC 4K
GPU

Mali400MP2 GPU @600MHz
Supports OpenGL ES 2.0

Memory (SDRAM)

2GB DDR3 (shared with GPU)
Onboard storage TF card (Max. 32GB) / MMC card slot
16GB EMMC Flash
Onboard Network 10/100/1000M Ethernet RJ45
Onboard WIFI Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input

A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps

Audio Input MIC
 Video Outputs Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
 Audio Output  3.5 mm Jack and HDMI
 Power Source   DC input can supply power, but USB OTG input don´t supply power
 USB 2.0 Ports  Three USB 2.0 HOST, one USB 2.0 OTG
 Buttons  Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
 Low-level peripherals  40 Pins Header
 GPIO(1x3) pin  UART, ground
 LED  Power led and Status led
 Other  IR Input
 Supported OS  Android, Ubuntu, Debian



INTERFACE DEFINITION
Product size 60mm x 93mm
Weight 83g
Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited
